GE Fanuc IC697CPU788

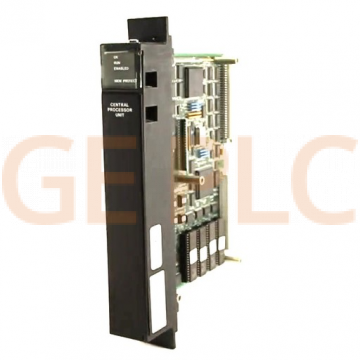

Image for IC697CPU788

Geplc.com sells surplus and refurbished products which are sourced through independent channels. All warranties and support, if applicable, are with geplc.com and not the manufacturer. Geplc.com is not an authorized distributor or representative for the listed manufacturers and makes no representations as to any quality control performed by any listed manufacturer on the products. Read more

Geplc.com sells surplus and refurbished products which are sourced through independent channels. All warranties and support, if applicable, are with geplc.com and not the manufacturer. Geplc.com is not an authorized distributor or representative for the listed manufacturers and makes no representations as to any quality control performed by any listed manufacturer on the products.

Some of the products sold by geplc.com may come with firmware installed on them. Geplc.com makes no representation as to your ability or right to download, obtain, or use any firmware provided by the product's manufacturer. To the extent you wish to use such firmware, it is your responsibility to comply with the terms of any applicable license or other such agreement related to the download, installation, or use of the firmware. Geplc.com makes no representation that the version of the firmware that is installed on any product it sells is appropriate for your needs or use. Further, geplc.com. does not sell, re-sell, or license software that may be needed to operate certain hardware and customers must obtain any necessary software licensing, maintenance, or upgrades from the manufacturer or other authorized source. To the extent any of the products sold by geplc.com requires software for operation, you acknowledge that geplc.com does not sell or license such software and that it is solely your responsibility to obtain the software or a proper license to use it from authorized sources. Read less

Part Number IC697CPU788
Product Line Series 90-70
Manufacturer GE Fanuc

Key Features

  • This module runs at 16MHz using the 80386DX microprocessor.
  • Uses up to 352 discrete inputs and outputs in any mix
  • Programmed with Windows and MS-DOS

Description

This GE Fanuc series 90-70 expandable CPU utilizes the 80386DX microprocessor up to 16MHz. It supports 512 Kbytes of expansion memory that is battery backed up. The program and data memory are both configurable.

GE_REMAN
icon-check
$2995
icon-check
1 in stock
icon-thumbs-up
2 Year GEPLC.com Warranty

Technical Specifications

Block Type Single Slot CPU
Number of Slots 1
Number of Points 352 discrete inputs and outputs
Serial Ports 1
Current Required 1.6 Amps
Block Type Single Slot CPU
Number of Slots 1
Number of Points 352 discrete inputs and outputs
Serial Ports 1
Current Required 1.6 Amps

Common Misspellings

Manufacturer Part Numbers (MPNs) are often difficult to read. Here are some commonly mistaken versions for the IC697CPU788:

  • IC697CPU78B
  • IC697CPU7B8
  • IC697CPU7BB
  • ICG97CPU788
  • ICG97CPU78B
  • ICG97CPU7B8
  • ICG97CPU7BB
  • 1C697CPU788
  • 1C697CPU78B
  • 1C697CPU7B8
  • 1C697CPU7BB
  • 1CG97CPU788
  • 1CG97CPU78B
  • 1CG97CPU7B8
  • 1CG97CPU7BB
typing

Variants

Minor product variations are often made by manufacturers, these variants are often referred to as “series” or “revisions”. In a few cases, the revision or series of your equipment will not impact you. At geplc.com, we are well-acquainted and fully capable to work with most variants of the IC697CPU788.

Revisions and series tend to be specified in an ambiguous fashion, leading to some confusion over how each variant is named. Here are several of the variants of the IC697CPU788 that we are familiar with and the many ways they may be written:

Series DA
  • IC697CPU788-DA

Series EA
  • IC697CPU788-EA

Series FA
  • IC697CPU788-FA
