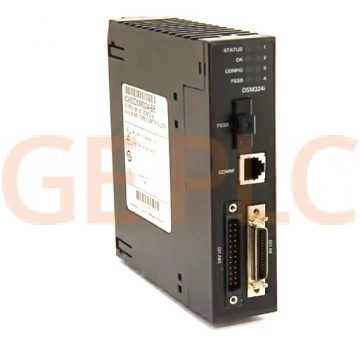

| Part Number | IC693DSM324 |
| Product Line | Series 90-30 |
| Manufacturer | GE Fanuc |
Key Features
- It has the function of halting programmed motion as well as follower motion by aborting %Q bit and enabling %Q bit.
- It can be used in the applications involving mechanical cams because of the presence of an electronic CAM follower.
- It also controls digital servos of four αi and βi series.
Description
This GE Fanuc series 90-30 motion controller is used in the PACsystems RX3i that calculates operations like math synchronous and logic decisions at a high speed rate. This module needs the valid CPU firmware for the 90-30 series of atleast version 10 or later. The power necessary for this module to operate is 5V DC and the current drawn from the DSM is 860 mA including the encoder current. The Load parameter COMM_REQ function is utilized to prevent the loss of PLC module faults.
Technical Specifications
| Block Type | Motion controller module |
| Power rating | 5 Volts |
| Current | 860mA |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Block Type | Motion controller module |
| Power rating | 5 Volts |
| Current | 860mA |
| Operating Temperature | 0 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
